Available
m2 total land area
m2 total construction area
warehouse built

Les Franqueses del Vallès


Pla de Llerona Industrial Estate
Carrer Iugoslàvia, 4, Les Franqueses del Vallès
I'm interested
PDF Catalogue

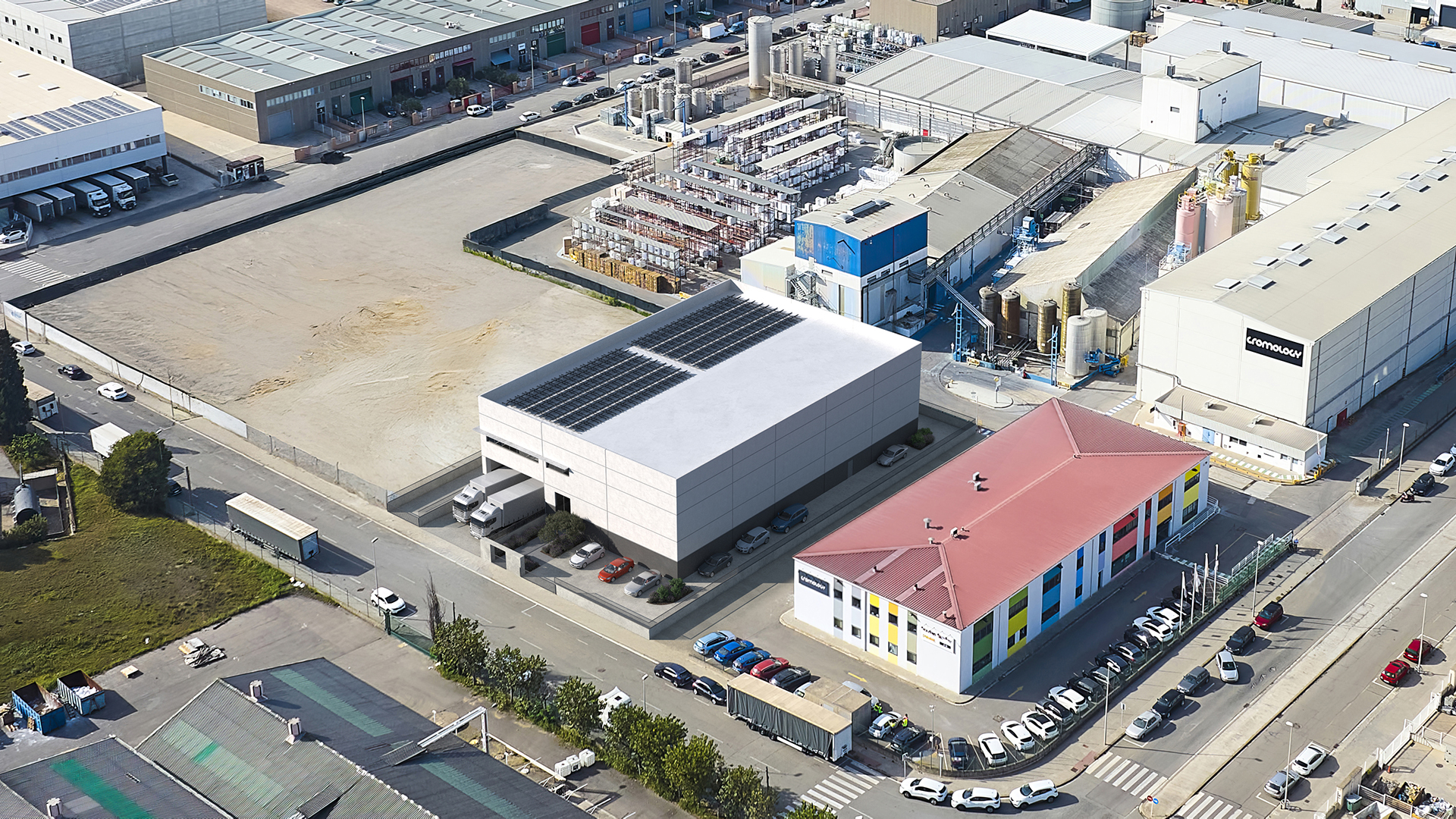

Building located in the municipality of Les Franqueses del Vallès, in the Pla de Llerona industrial estate. Built to the highest quality standards and complying with the most demanding sustainability criteria. Plot of 2,364 m², consisting of a warehouse with 1,493 m² built, 1,232 m² on the main floor. The main warehouse is divided into two sectors of 775 m² and 252 m² for racking, two loading docks, yard area and cross-dock of 112 m², and 261 m² built on the first floor for offices. Capacity for up to 1,668 pallets in logistics use. High risk level 8 for logistics use.

Roof

Tipe: Deck
Membrane: TPO 1,8 mm – FM Approved
Insulation: 100 mm rock wool – Hardrock 391
Sheet metal: Profile 48, 0.7 mm

Prefabricated structure

Walls: 20 cm lightweight – 6+8+6

Slab

Flatness: FF = 50 | FL = 40
Thickness: 20 cm

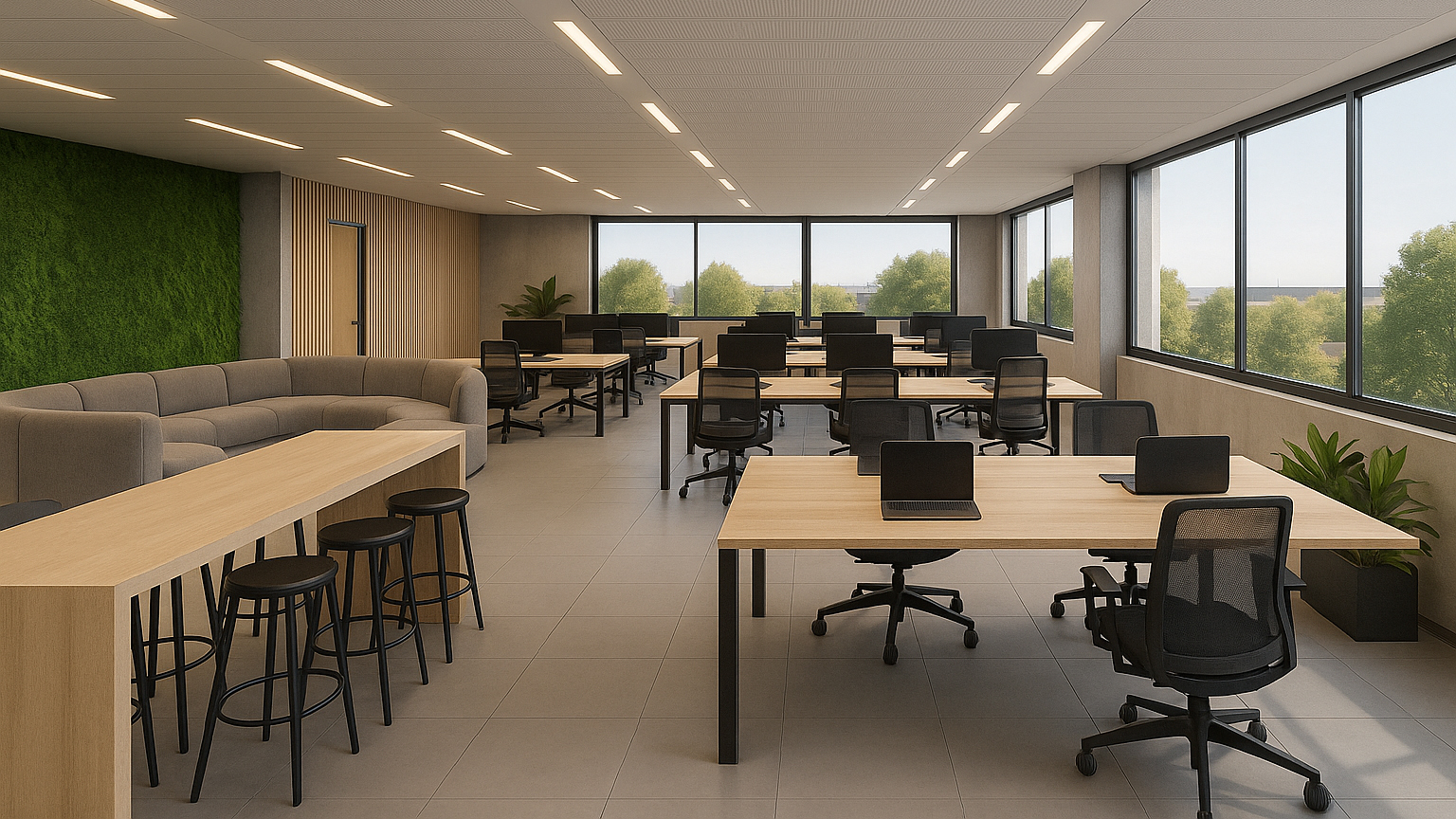

Offices

Flooring: AC 5 laminate
Joinery: Aluminium frame with thermal break
Suspended ceiling: Accessible mineral fibre panels
HVAC: Air-based heating and cooling

Energy certificate: A

Accessibility

Installed lift
1 accessible parking space
1 adapted toilet on the ground floor
1 adapted toilet on the office area
Changing rooms with showers for staff

Security

Complete perimeter fencing
Anti-intrusion alarm system

Advantages

  • Capacity for up to 1,668 pallets
  • Forklift racking Classe 300A
  • Proximity to C-17 and AP-7 highways

Technical specifications

  • 10 m clear height under beam
  • 2 loading docks
  • 2 sectional doors
  • Ground floor warehouse area: 1,493 m²
  • Office area on first floor: 261 m²
  • Heat recovery system
  • Air-based HVAC system
  • Dedicated office space
  • Dedicated rack room
  • 13 parking spaces for light vehicles

Sustainability

  • Expected environmental certification: BREEAM Very Good
  • LED lighting throughout the project
  • 68 kWp photovoltaic installation for self-consumption
  • Estimated annual production: 86,398.92 kWh
  • Roof designed for additional solar panels with an overload of 0.25 kN/m²
  • 50 m² of native vegetation
  • 2 electric vehicle charging stations
  • Energy certificate: A
